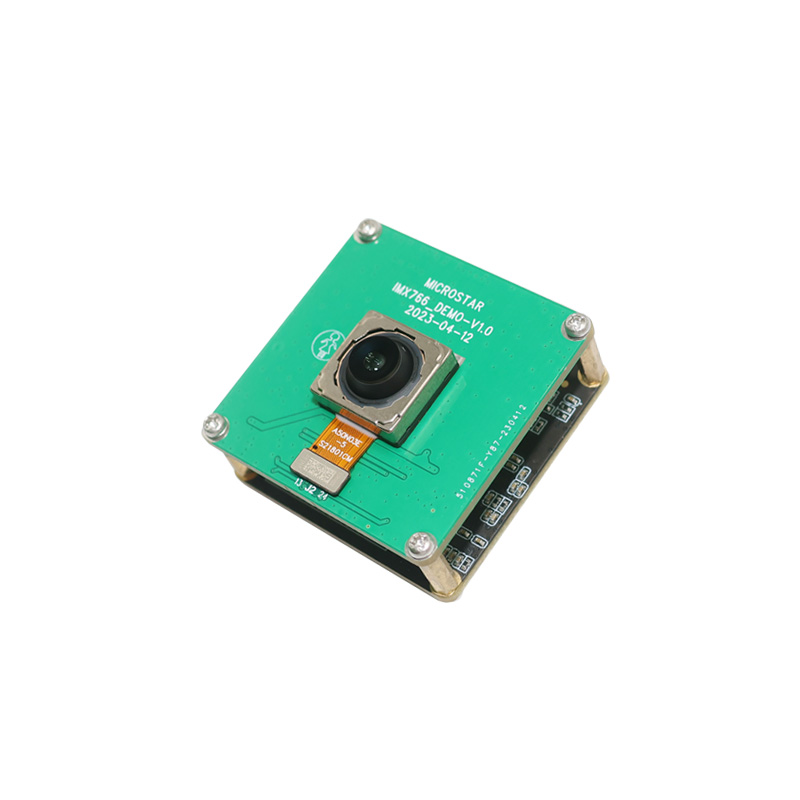

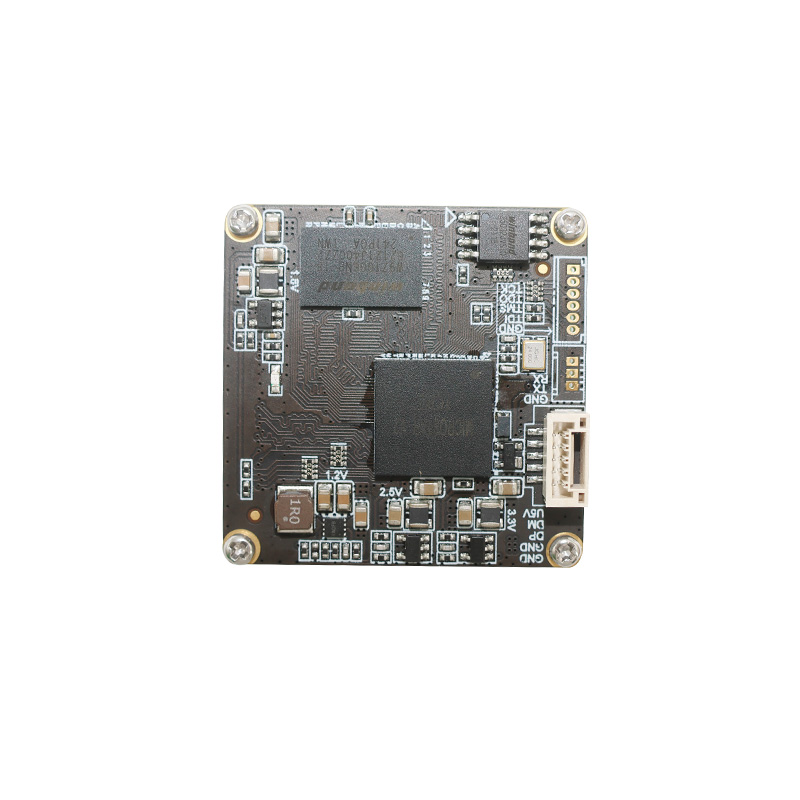

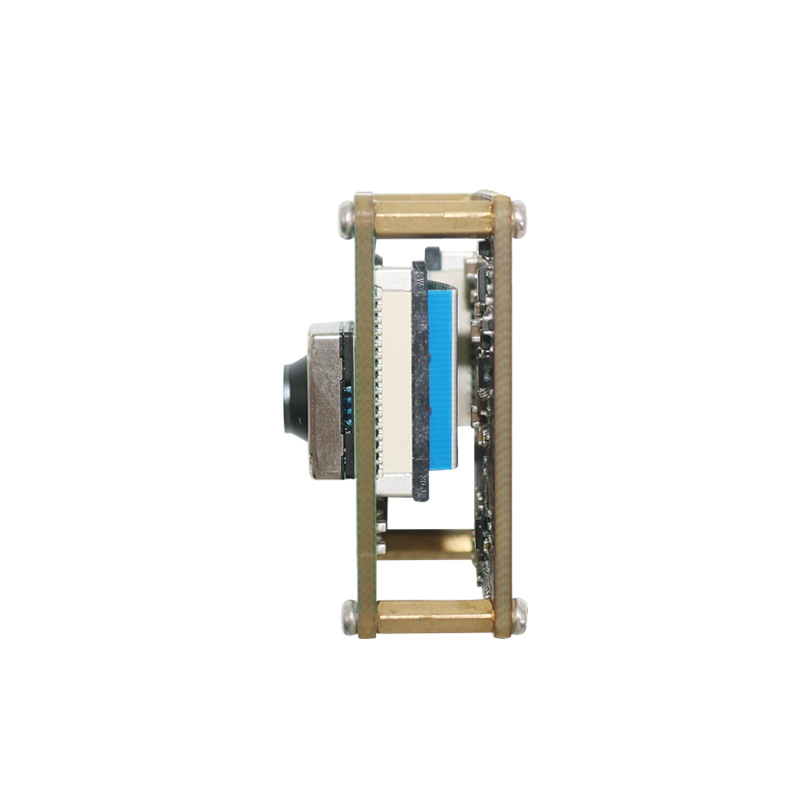

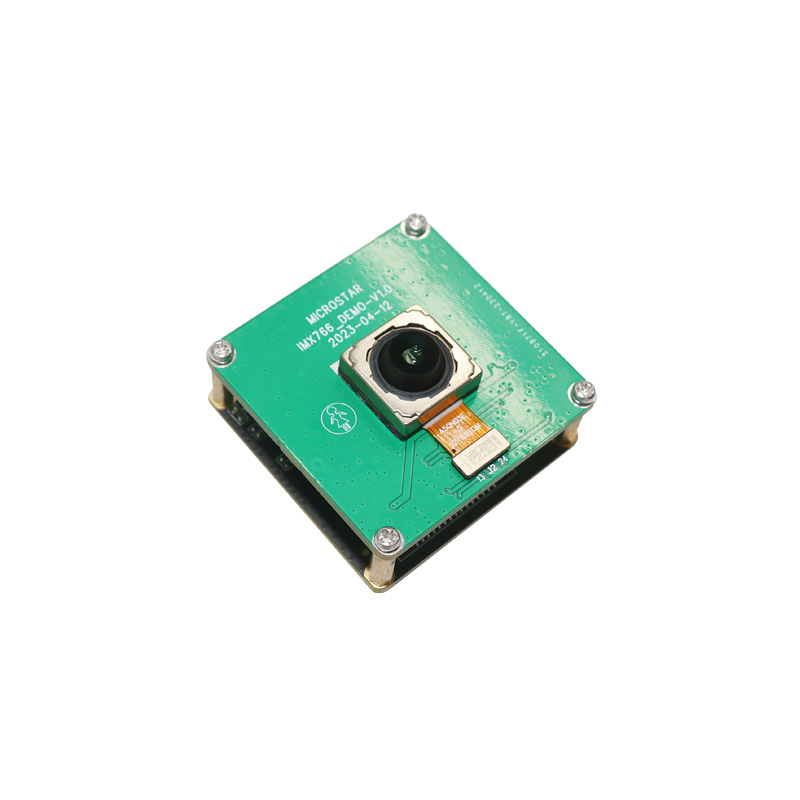

IMT-USB-M2-50200-A85
50MP Auto Focus USB 2.0 Camera Module
| Camera Module No. |
IMT-USB-M2-50200-A85 |
| Image Sensor |
50MP 4K |
| Sensor Type |
1/1.56" |
| Pixel Size |
1.00 um x 1.00 um |
| Resolution |
8192 x 6144 @ 5 FPS |
| Digital Zoom |
Supported |
| F. NO. |
1.80 |
| View Angle |
85.5°(DFOV) |
| Lens Dimensions |
13.50 x 13.50 mm |
| Module Type |
Auto Focus PDAF CDAF |
| Interface |
USB 2.0 |
| Output Format |
MJPG |
| Auto Control |
Saturation, Contrast, Acutance
White Balance, Exposure |
| Audio (Optional) |
Digital Microphone, Single, Dual Channel |
| Input Voltage |
DC 5V |
| Working Current |
Max 500mA |
| PCB Size |
38.0 x 38.0 x 24.7 mm |
| System Compatibility |
Windows XP (SP2, SP3), Vista, 7, 8, 10, 11
Android, Mac OS, Linux or OS with UVC UAC Driver, Raspberry Pi by USB Port |
| Software for USB Camera |
AMCAP, Webcam Viewer, V4L2 Controls
Contacam, VLC Player, MotionEye OS
iSpy, ZoneMider, Yawcam |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-20°C to +70°C |
|
