IMT-USB-M2-48100-F114

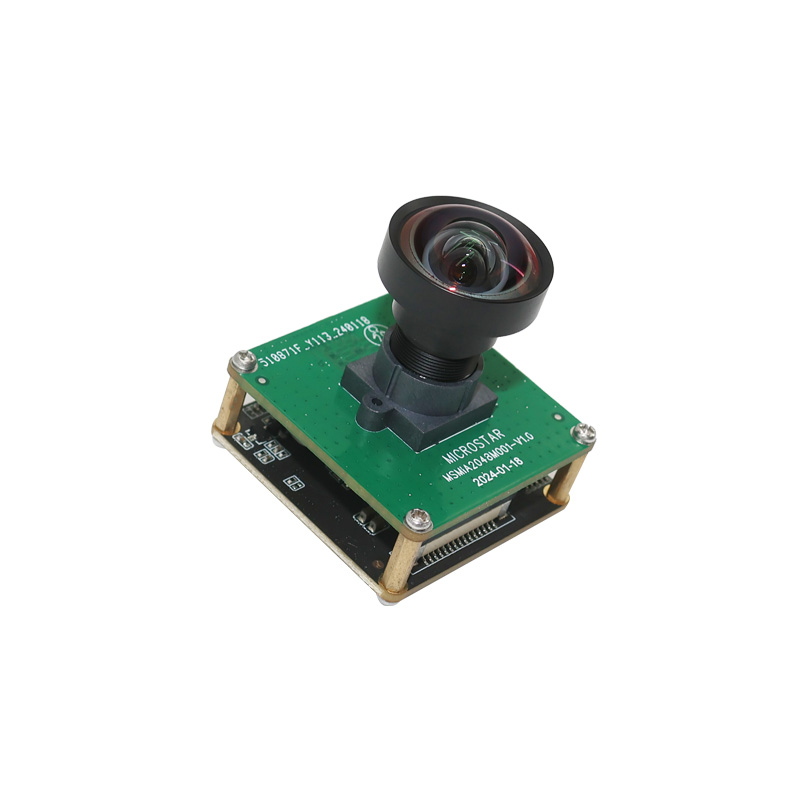

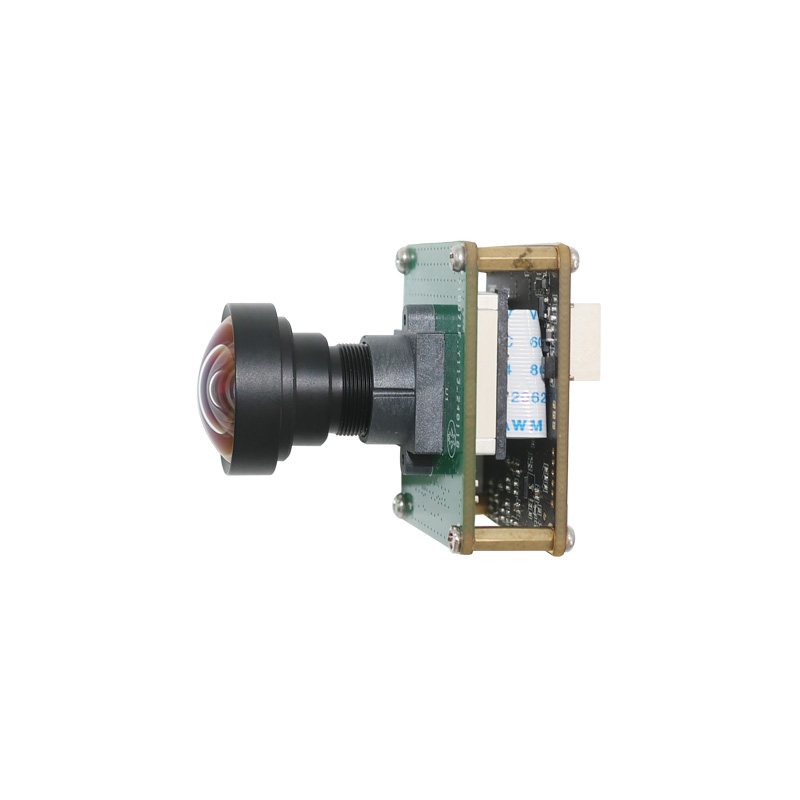

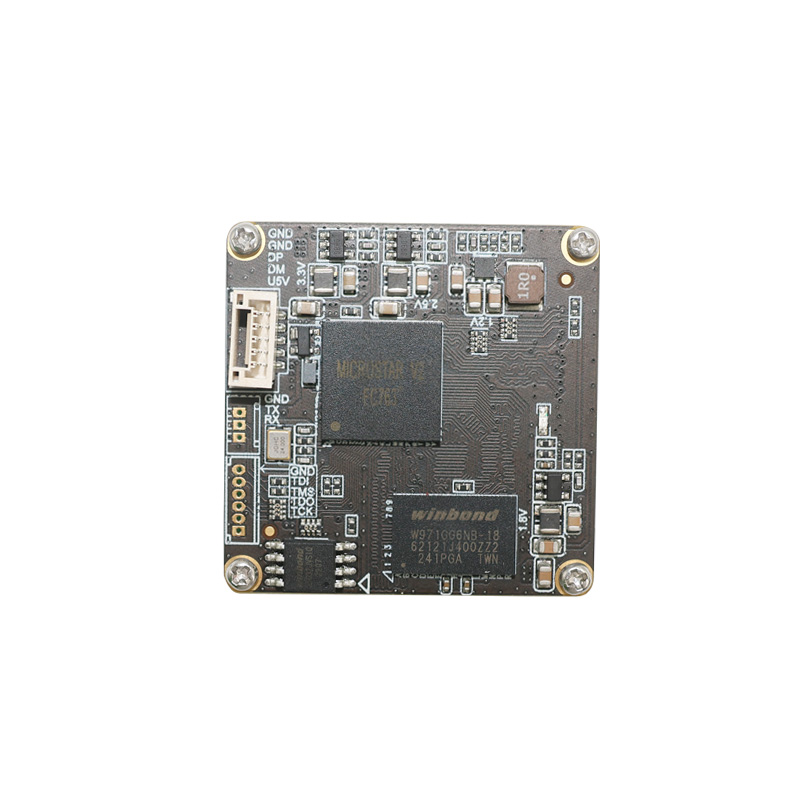

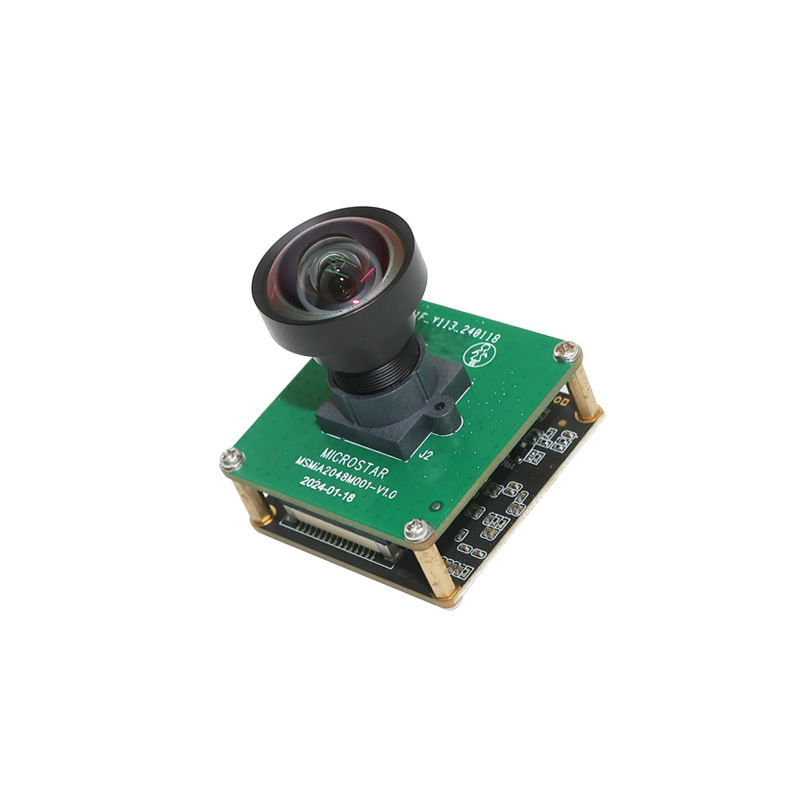

48MP M12 Fixed Focus USB 2.0 Camera Module
| Camera Module No. |
IMT-USB-M2-48100-F114 |
| Image Sensor |
48MP 4K |
| Sensor Type |
1/2.0" |
| Pixel Size |
0.80 um x 0.80 um |
| Resolution |
8000 x 6000 @ 5 FPS |
| TTL |
29.56 mm |
| F. NO. |
2.00 |
| View Angle |
114°(DFOV) 105°(HFOV) 68°(VFOV) |
| Lens Dimensions |
15.30 x 15.30 mm |
| Module Type |
Fixed Focus |
| Interface |
USB 2.0 |
| Output Format |
MJPG |
| Auto Control |
Saturation, Contrast, Acutance
White Balance, Exposure |
| Audio (Optional) |
Digital Microphone, Single, Dual Channel |
| Input Voltage |
DC 5V |
| Working Current |
Max 500mA |
| PCB Size |
38.0 x 38.0 x 48.0 mm |
| System Compatibility |
Windows XP (SP2, SP3), Vista, 7, 8, 10, 11
Android, Mac OS, Linux or OS with UVC UAC Driver, Raspberry Pi by USB Port |
| Software for USB Camera |
AMCAP, Webcam Viewer, V4L2 Controls
Contacam, VLC Player, MotionEye OS
iSpy, ZoneMider, Yawcam |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-20°C to +70°C |
|
