IMT-USB-SM2-04100-F42

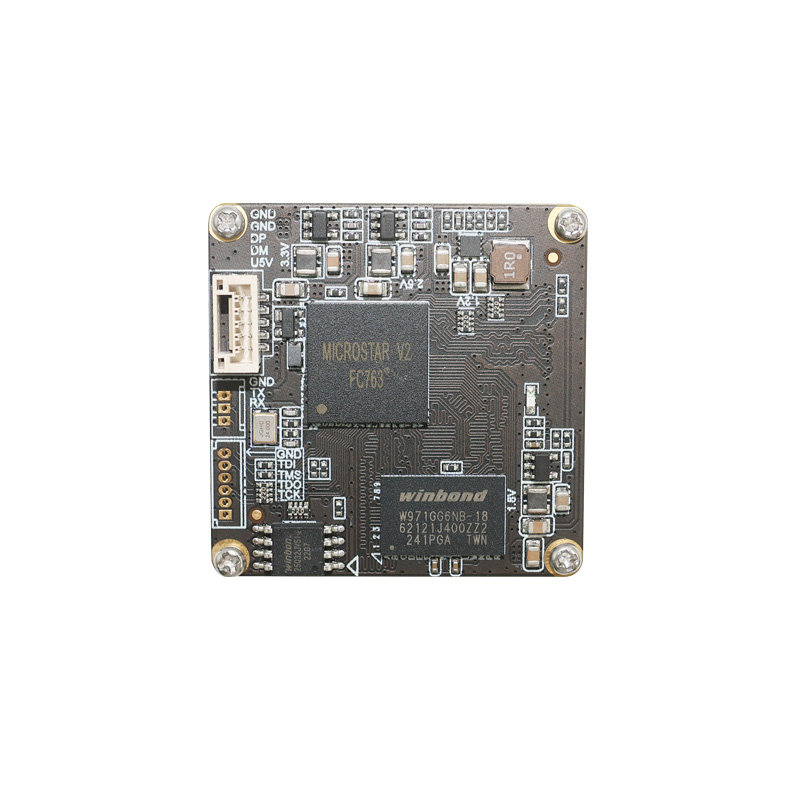

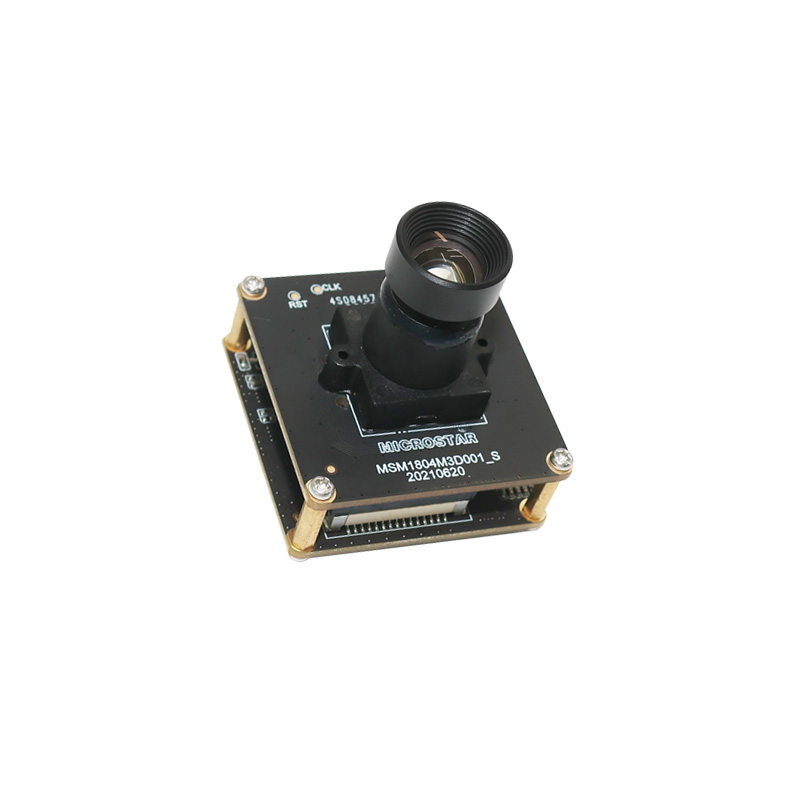

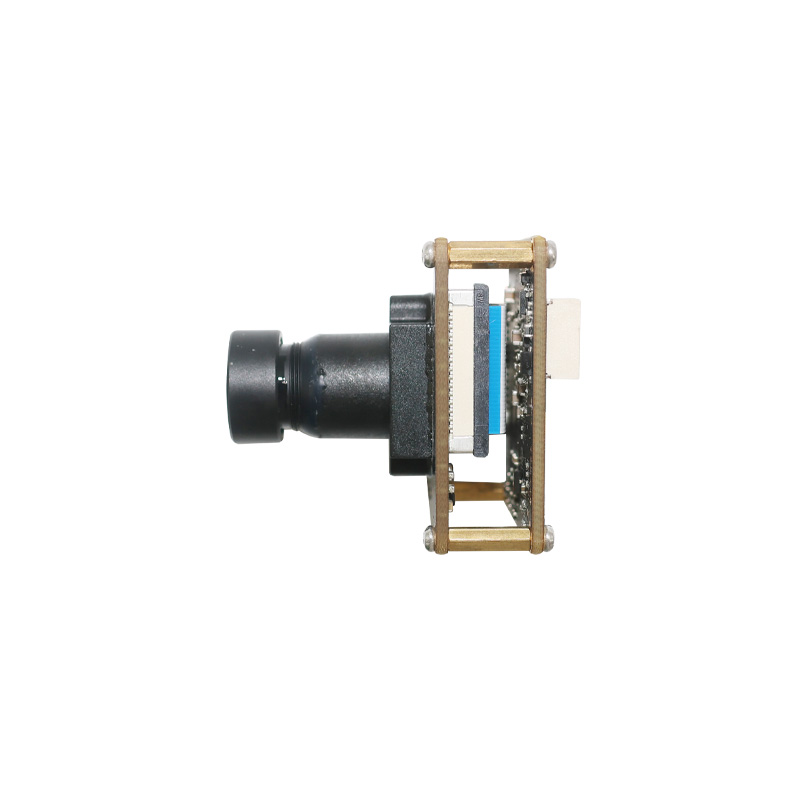

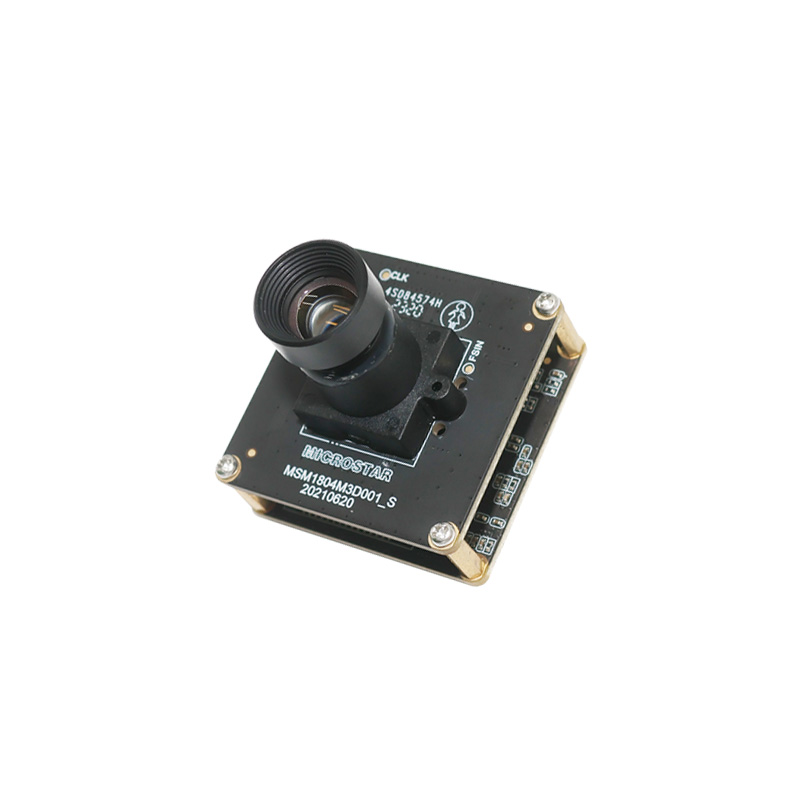

4MP M12 Fixed Focus USB 2.0 Camera Module
| Camera Module No. |
IMT-USB-SM2-04100-F42 |
| Image Sensor |
4MP Low Light |
| Sensor Type |
1/1.79" |
| Pixel Size |
2.90 um x 2.90 um |
| Resolution |
2688 x 1520 @ 30 FPS |
| TTL |
25.75 mm |
| F. NO. |
2.00 |
| View Angle |
42°(DFOV) 34°(HFOV) 25.6°(VFOV) |
| Lens Dimensions |
17.00 x 17.00 mm |
| Module Type |
Fixed Focus |
| Interface |
USB 2.0 |
| Output Format |
MJPG / YUV2 |
| Auto Control |
Saturation, Contrast, Acutance
White Balance, Exposure |
| Audio (Optional) |
Digital Microphone, Single, Dual Channel |
| Input Voltage |
DC 5V |
| Working Current |
Max 500mA |
| PCB Size |
38.0 x 38.0 x 44.3 mm |
| System Compatibility |
Windows XP (SP2, SP3), Vista, 7, 8, 10, 11
Android, Mac OS, Linux or OS with UVC UAC Driver, Raspberry Pi by USB Port |
| Software for USB Camera |
AMCAP, Webcam Viewer, V4L2 Controls
Contacam, VLC Player, MotionEye OS
iSpy, ZoneMider, Yawcam |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-30°C to +85°C |
|
