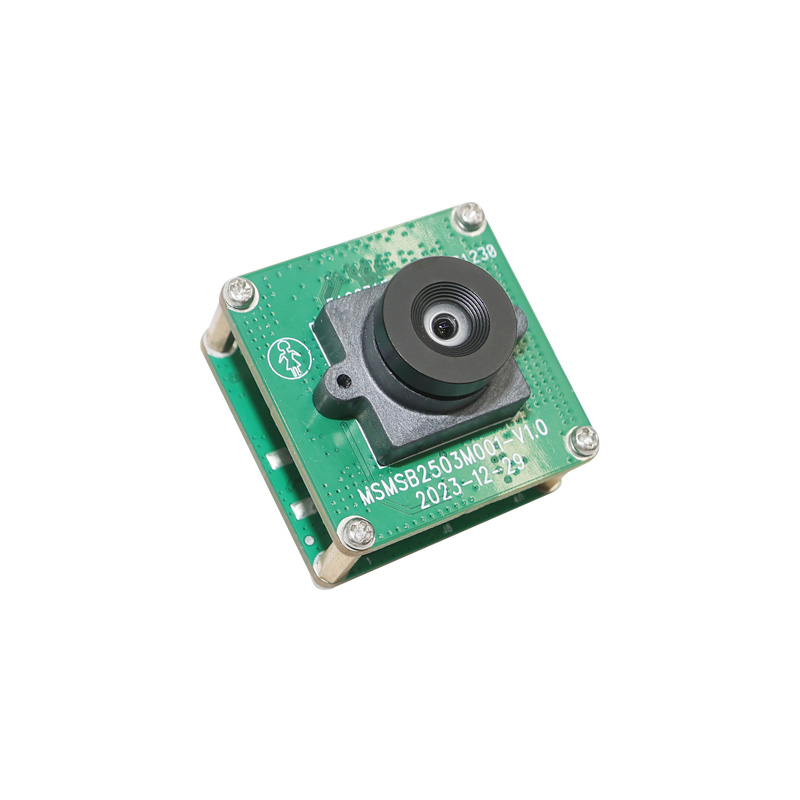

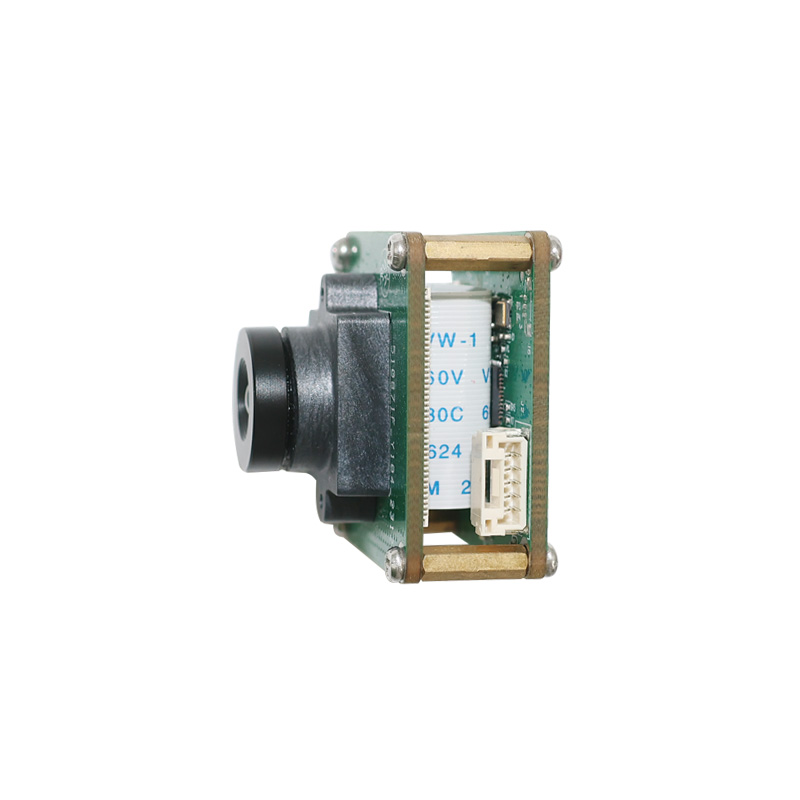

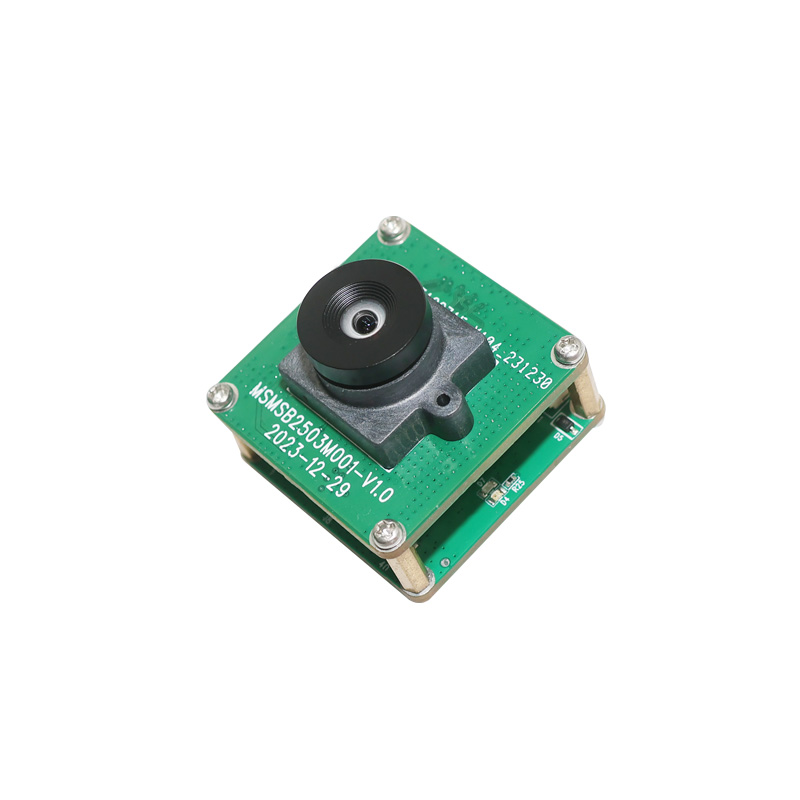

IMT-USB-HM3-03100-F95
3MP HDR M12 Fixed Focus USB 2.0 Camera Module
| Camera Module No. |
IMT-USB-HM3-03100-F95 |
| Image Sensor |
3MP HDR |
| Sensor Type |
1/2.44" |
| Pixel Size |
3.00 um x 3.00 um |
| Resolution |
1920 x 1536 @ 30 FPS |
| TTL |
12.0 mm |
| F. NO. |
2.40 |
| View Angle |
95°(DFOV) 85°(HFOV) 53°(VFOV) |
| Lens Dimensions |
17.00 x 17.00 mm |
| Module Type |
Fixed Focus |
| Interface |
USB 2.0 |
| Output Format |
MJPG |
| Auto Control |
Saturation, Contrast, Acutance
White Balance, Exposure |
| Audio (Optional) |
Digital Microphone, Single, Dual Channel |
| Input Voltage |
DC 5V |
| Working Current |
Max 500mA |

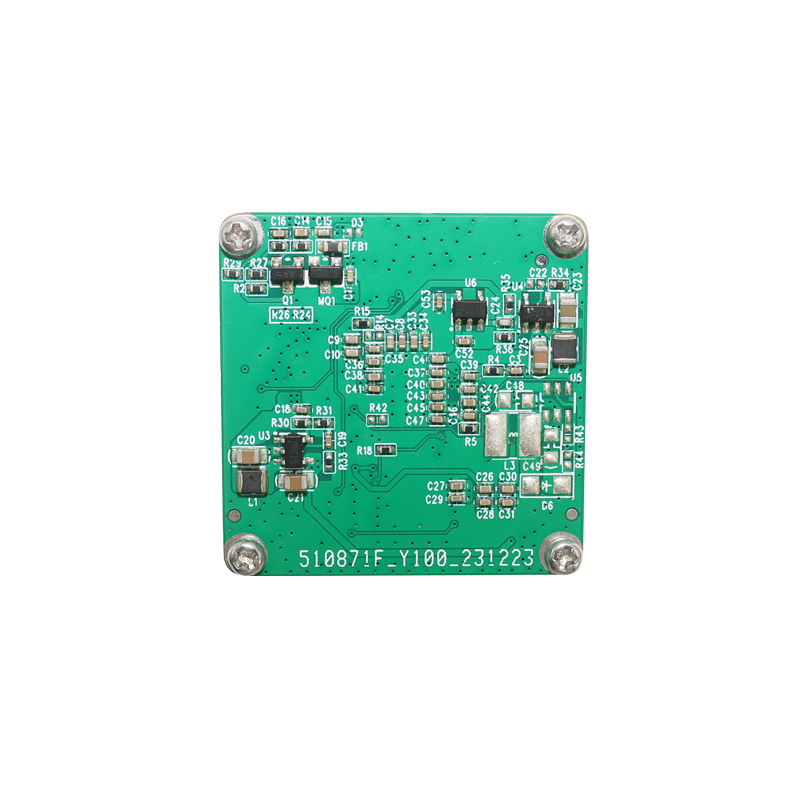

| PCB Size |
32.0 x 32.0 x 25.5 mm |
| System Compatibility |
Windows XP (SP2, SP3), Vista, 7, 8, 10, 11
Android, Mac OS, Linux or OS with UVC UAC Driver, Raspberry Pi by USB Port |
| Software for USB Camera |
AMCAP, Webcam Viewer, V4L2 Controls
Contacam, VLC Player, MotionEye OS
iSpy, ZoneMider, Yawcam |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-40°C to +105°C |
|
