IMT-FIC13VB12F-C2-L67 V1.0

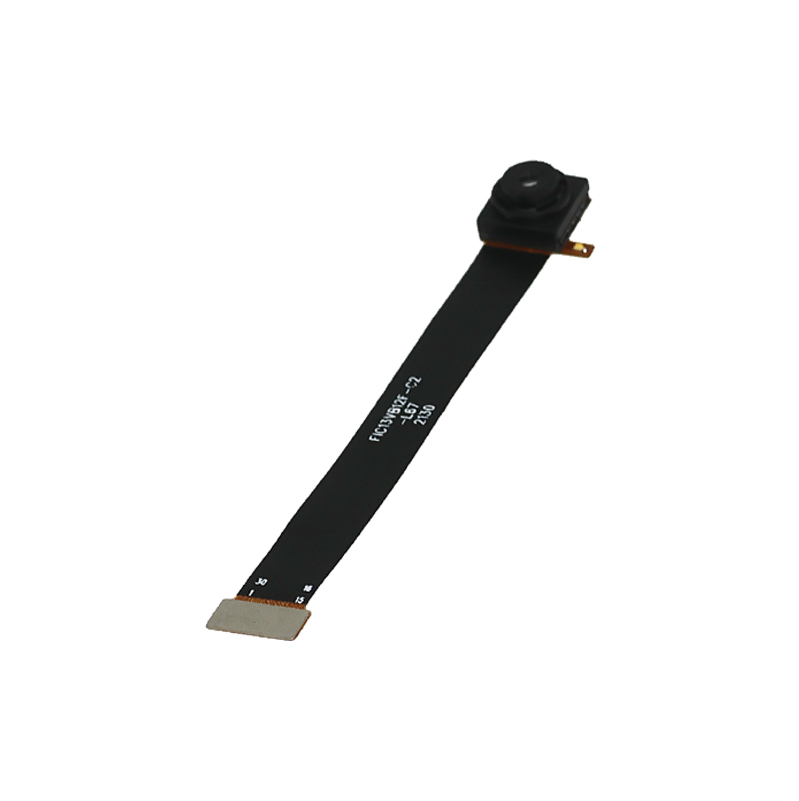

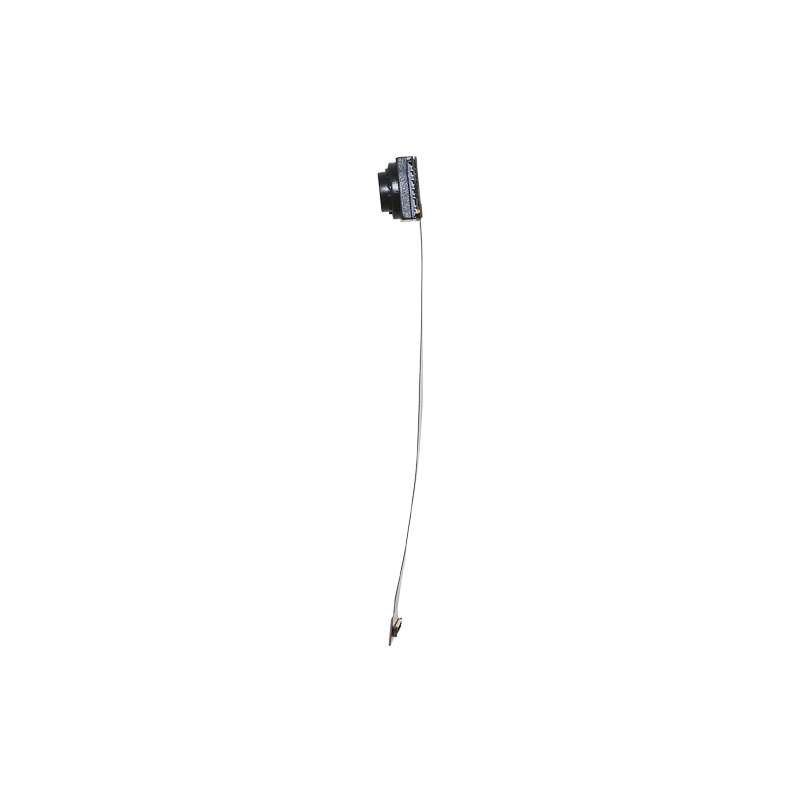

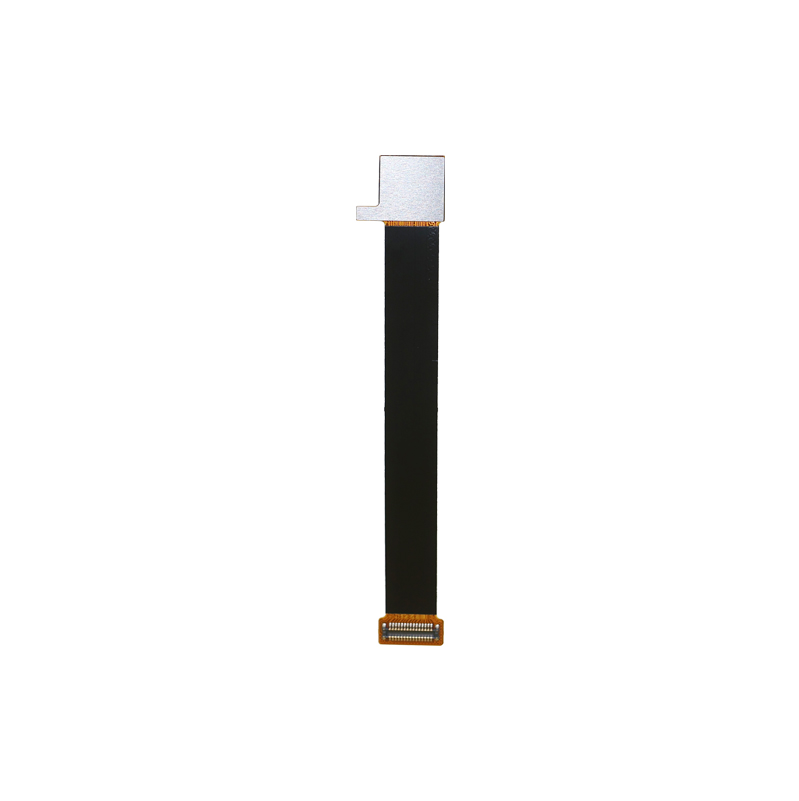

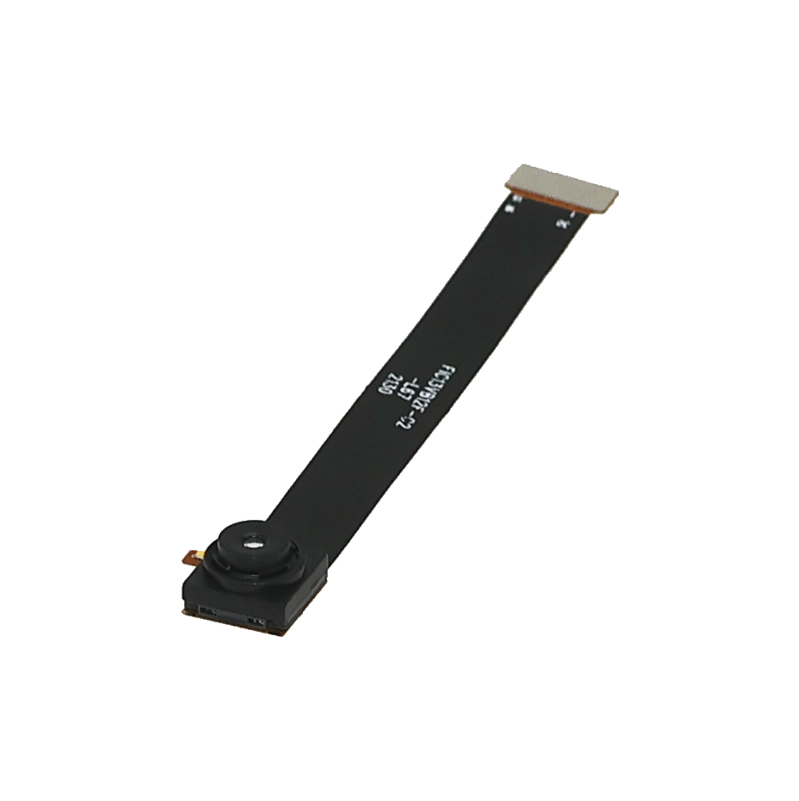

13MP OmniVision OV13870 MIPI Interface Fixed Focus Camera Module
| Camera Module No. |
IMT-FIC13VB12F-C2-L67 V1.0 |
| Resolution |
13MP |
| Image Sensor |
OV13870 |
| Sensor Type |
1/2.74" |
| Pixel Size |
1.25 um x 1.25 um |
| EFL |
3.43 mm |
| F.NO |
2.00 |
| Pixel |
4000 x 3000 |
| View Angle |
85.0°(DFOV) 72.6°(HFOV) 57.3°(VFOV) |
| Lens Dimensions |
8.50 x 8.50 x 5.45 mm |
| Module Size |
67.00 x 9.00 mm |
| Module Type |
Fixed Focus |
| Interface |
MIPI |
| Auto Focus VCM Driver IC |
None |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-30°C to +85°C |
| Mating Connector |
BAF04-30083-0500 |
|
