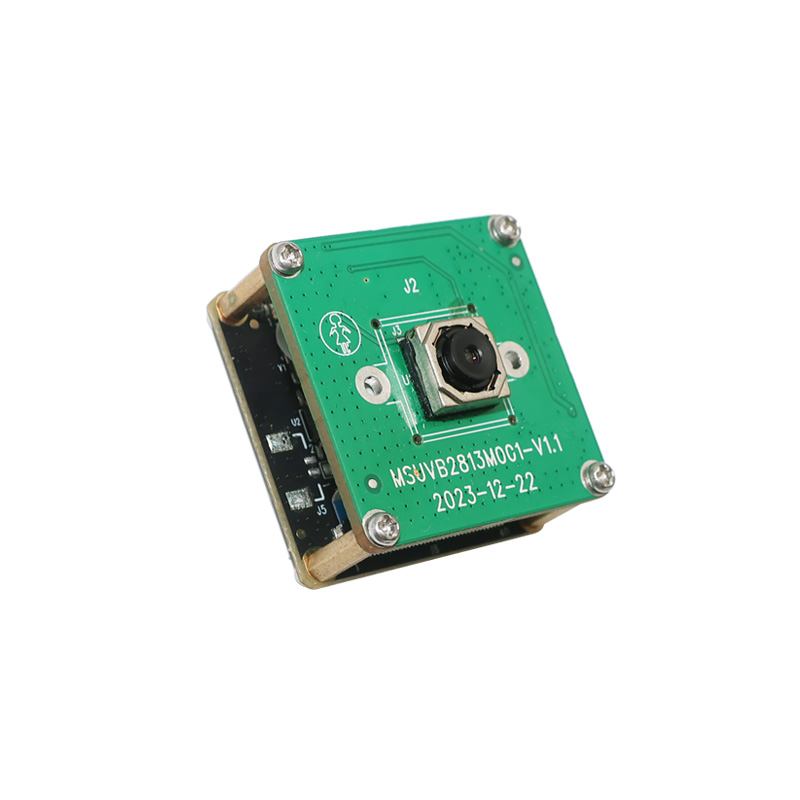

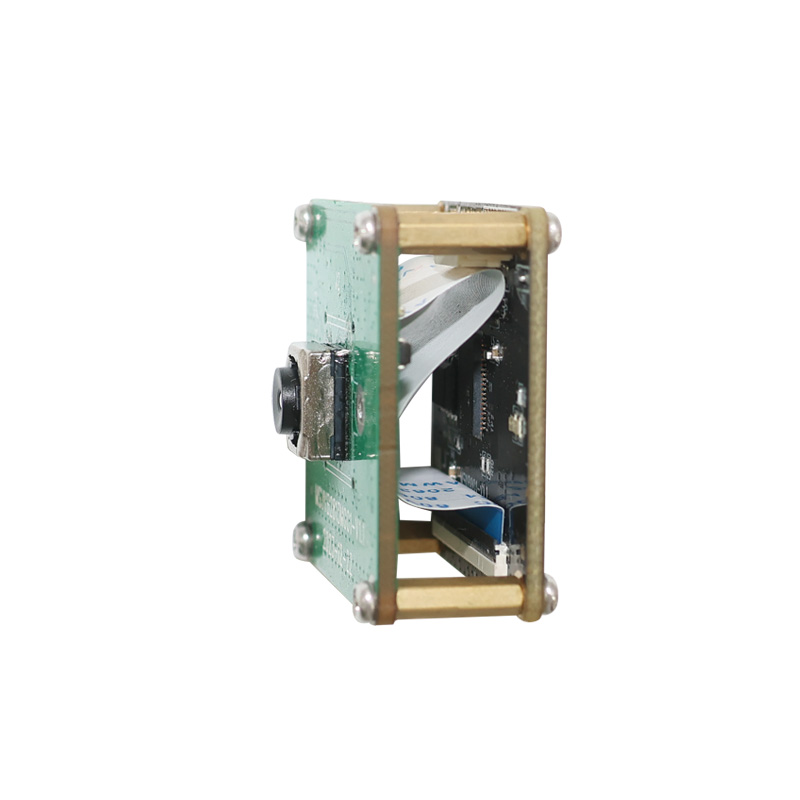

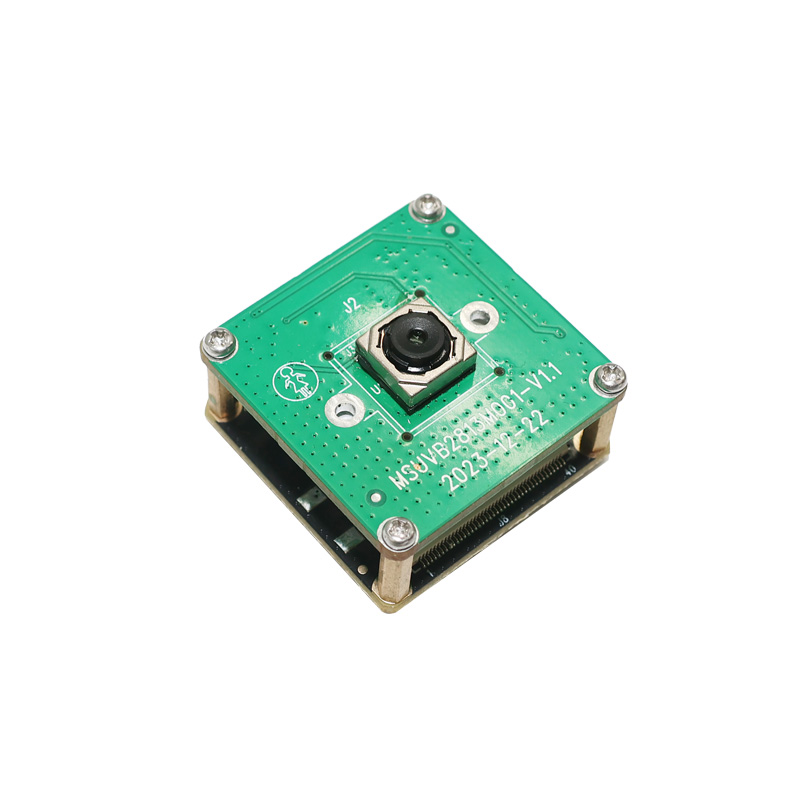

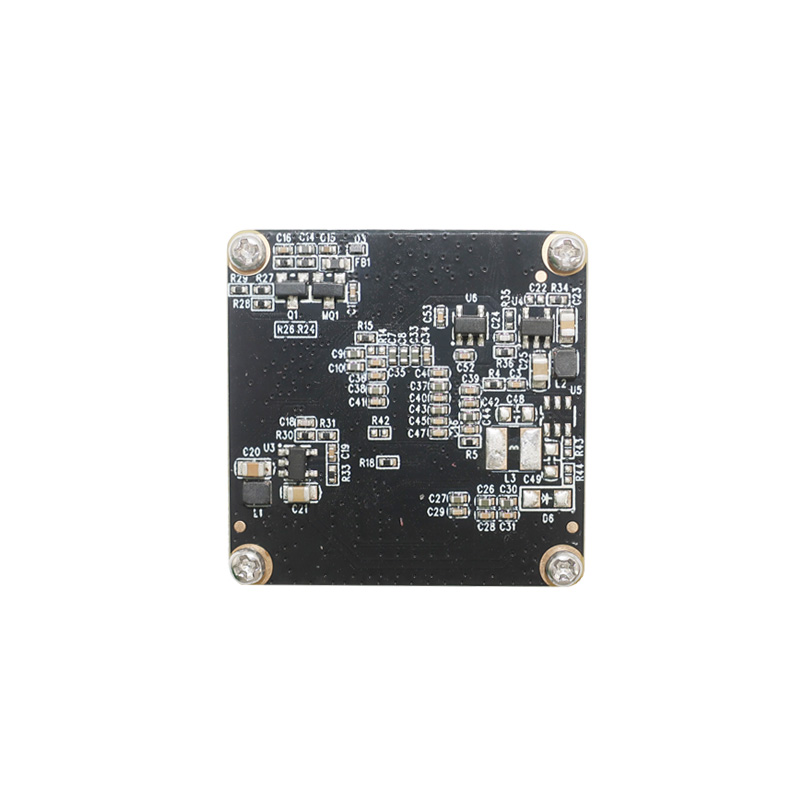

IMT-USB-M3-13300-A85
13MP 4K Auto Focus USB 2.0 Camera Module
| Camera Module No. |
IMT-USB-M3-13300-A85 |
| Image Sensor |
13MP 4K |
| Sensor Type |
1/2.74" |
| Pixel Size |
1.25 um x 1.25 um |
| Resolution |
4224 x 3136 @ 15 FPS |
| Digital Zoom |
Supported |
| F. NO. |
2.00 |
| View Angle |
85°(DFOV) 72.6°(HFOV) 57.3°(VFOV) |
| Lens Dimensions |
8.80 x 8.80 mm |
| Module Type |
Auto Focus PDAF CDAF |
| Interface |
USB 2.0 |
| Output Format |
MJPG |
| Auto Control |
Saturation, Contrast, Acutance
White Balance, Exposure |
| Audio (Optional) |
Digital Microphone, Single, Dual Channel |
| Input Voltage |
DC 5V |
| Working Current |
Max 500mA |
| PCB Size |
32.0 x 32.0 x 18.3 mm |
| System Compatibility |
Windows XP (SP2, SP3), Vista, 7, 8, 10, 11
Android, Mac OS, Linux or OS with UVC UAC Driver, Raspberry Pi by USB Port |
| Software for USB Camera |
AMCAP, Webcam Viewer, V4L2 Controls
Contacam, VLC Player, MotionEye OS
iSpy, ZoneMider, Yawcam |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-30°C to +85°C |
|
