8MP USB Camera
Fixed Focus USB Camera


IMT-USB-M3-08100-F118

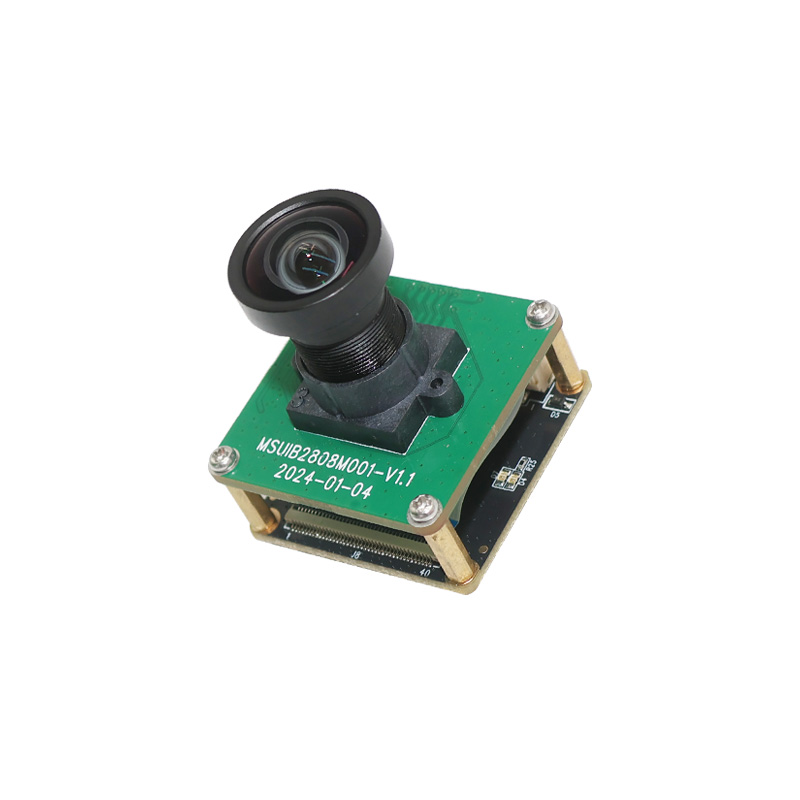

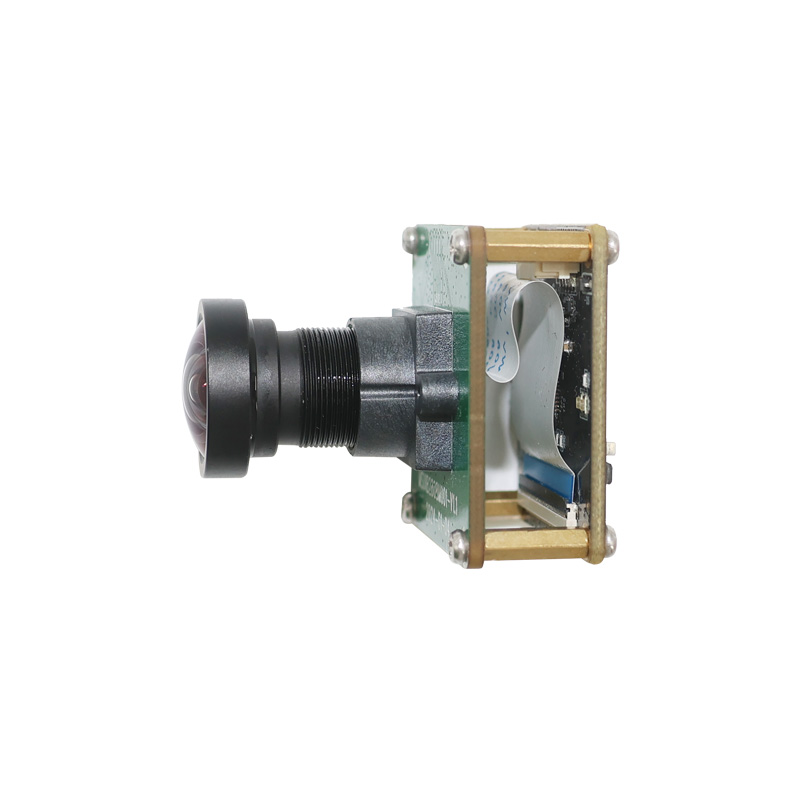

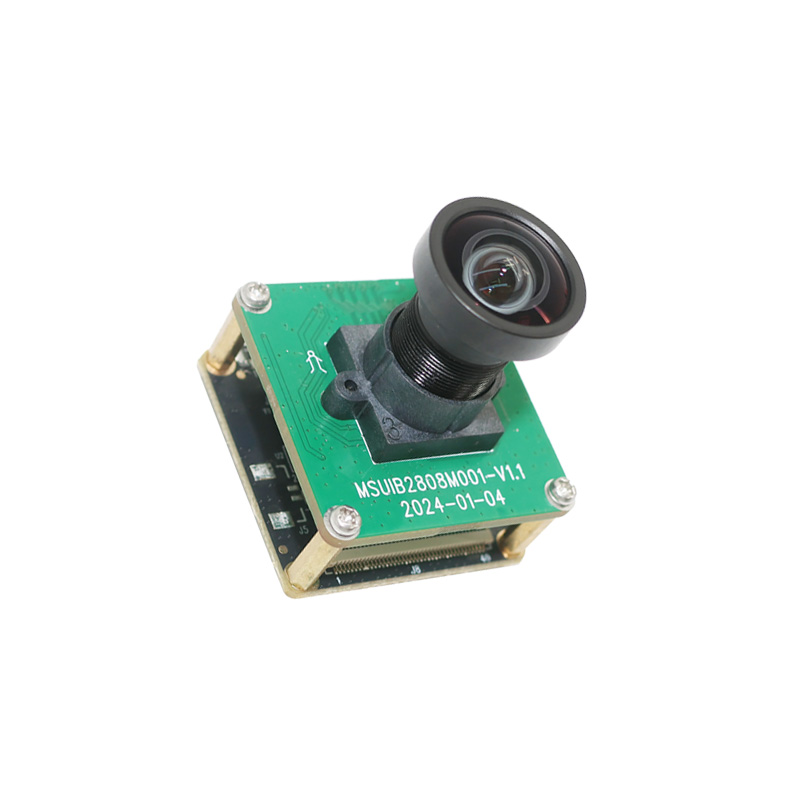

8MP 4K M12 Fixed Focus USB 2.0 Camera Module


 Camera Module No. IMT-USB-M3-08100-F118
 Image Sensor 8MP 4K
 Sensor Type 1/2.8"
 Pixel Size 1.45 um x 1.45 um
 Resolution 3840 x 2160 @ 30 FPS
 TTL 24.5 mm
 F. NO. 2.20
 View Angle 118°(DFOV)  108°(HFOV)  72°(VFOV)
 Lens Dimensions 15.30 x 15.30 mm
 Module Type Fixed Focus
 Interface USB 2.0
 Output Format MJPG / YUV2
 Auto Control Saturation, Contrast, Acutance
White Balance, Exposure
 Audio (Optional) Digital Microphone, Single, Dual Channel
 Input Voltage DC 5V
 Working Current Max 500mA

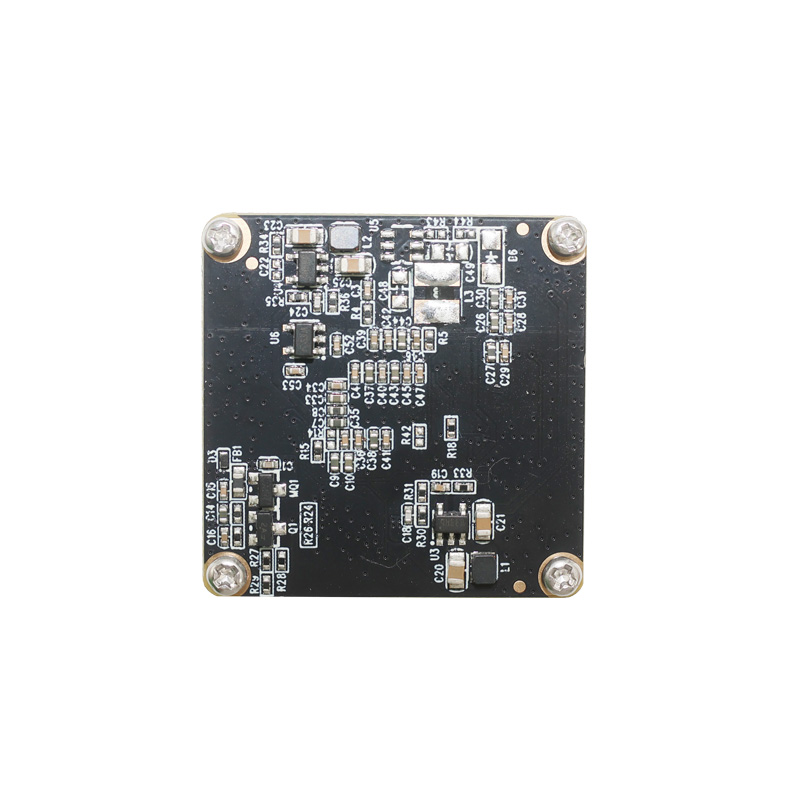

 PCB Size 32.0 x 32.0 x 38.0 mm
 System Compatibility Windows XP (SP2, SP3), Vista, 7, 8, 10, 11
Android, Mac OS, Linux or OS with UVC UAC Driver, Raspberry Pi by USB Port
 Software for USB Camera AMCAP, Webcam Viewer, V4L2 Controls
Contacam, VLC Player, MotionEye OS
iSpy, ZoneMider, Yawcam
 Lens Type 650nm IR Cut
 Operating Temperature -30°C to +85°C
